Multi-channel digital and analog I/O
Connect Field I/O over Industrial Ethernet
Acquire and control distributed digital and analog signals through an Ethernet-connected I/O module for machines, monitoring systems, and industrial equipment.
Industrial EthernetField Connectivity
Digital + AnalogSignal Handling
RemoteI/O Expansion

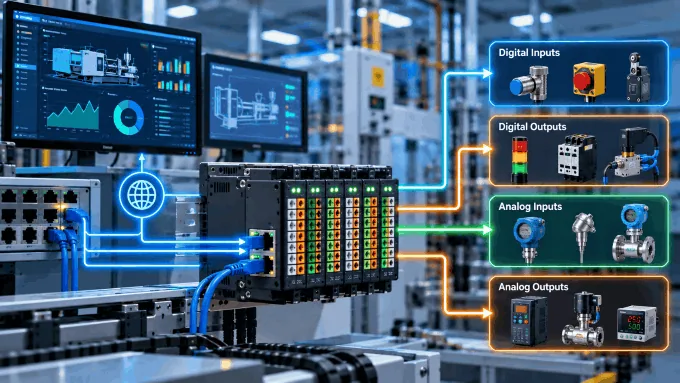

Multi-Channel Digital/Analog I/O Module — Ethernet
The MayilVeera Ethernet I/O Module provides network access to field-level digital and analog signals. It can be used for distributed monitoring, equipment integration, utility data collection, remote I/O, and retrofit projects.
“Ethernet” describes the physical/network connection. The website must separately state the exact application protocol implemented by the product.
Logical Architecture
A website-level view of how the product connects sources, processing layers, diagnostics, and destination systems.
SCADAIndustrial PCGatewayController
01
Ethernet Network
02
Network Protocol Layer
Exact Application Protocol — TBC
03
Local Processing and Diagnostics
04
Signal Conditioning and Isolation
Digital Input/Output
SensorsSwitchesRelays
Analog Input/Output
TransmittersActuators
Key Capabilities
Ethernet-based communication
Configurable channel and signal mapping
Remote monitoring and output control
Communication and channel diagnostics
Integration with industrial computers, gateways, or software applications
Defined watchdog and startup behaviour
Configuration backup and restore, if implemented
How It Works
The document flow is presented as an implementation-style process so visitors can understand the operating path quickly.
- 01
The module reads field signals and makes them available through its supported Ethernet application protocol. Where outputs are included, authenticated or authorised clients can issue commands according to the configured permissions and watchdog rules.
Applications
Where It Fits
Remote machine I/O
Utility and energy monitoring
Pump and motor-status monitoring
Building and facility monitoring
Test benches and laboratories
Retrofit of existing equipment
Remote alarm and status acquisition
Environmental monitoring
Small automation cells
Edge-gateway signal expansion
Benefits
Practical Benefits
Extends field signals over an existing Ethernet infrastructure
Reduces dedicated point-to-point wiring
Supports remote placement near equipment
Makes mixed I/O accessible to supervisory applications
Simplifies phased equipment modernisation
Integration and Deployment
The site survey should cover field-signal types, output loads, application protocol, network addressing, cybersecurity, update rate, watchdog behaviour, power, grounding, isolation, enclosure, and environmental conditions.
Reliability and Safety
Network timeout and retry behaviour
Output watchdog
Defined startup state
Defined network-loss state
Power and communication diagnostics
Isolation and surge protection as specified
External interlocks and safety circuits for hazardous operations
Need Help Selecting the Right Product?
Equipment and controller make or model
Required interfaces, protocols, channels, or tag count
Operating environment and target platform
Update rate, cycle time, delivery schedule, and custom engineering needs
Do not publish price, availability, certification, warranty, protocol, electrical rating, capacity, performance, or compatibility statements until they are linked to the exact shipping SKU or software version.
Frequently Asked Questions
Which protocol does the module use over Ethernet?
This must be stated for the exact product revision. Ethernet alone does not define the application protocol.
Can it directly switch motors?
Only if the electrical output rating is appropriate. Normally, larger loads require an external relay or contactor and correctly rated protection.
Can it be used for safety interlocks?
Not unless the product and complete system are specifically designed and certified for the required safety function.
Plan Your Ethernet I/O Integration
Share the I/O list, signal ranges, output loads, required protocol, update rate, network topology, and installation environment for model selection.
Start Your Product Discussion
